King Canada

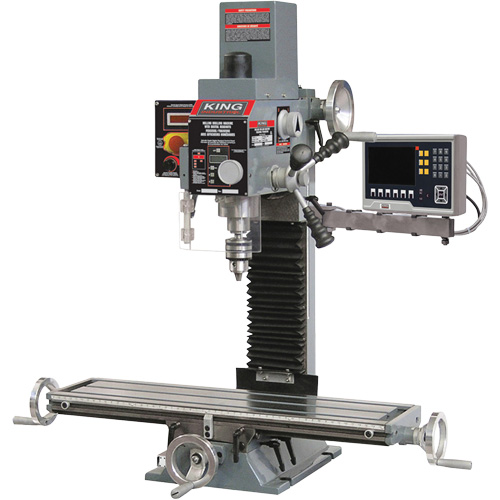

Milling Drilling Machine with 3-Axis Digital Readout, 2 Speeds, 3/4"/5/8" Drilling Capacity

Model: TCV129

Mfr. No.: KC-20VS-2/DRO

  • Milling Drilling Machine with 3-Axis Digital Readout, 2 Speeds, 3/4"/5/8" Drilling Capacity R.M.G. Prévention

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,342.00 / Each

0 In Stock

Includes

  • Milling drilling machine
  • 1/2" chuck
  • chuck key
  • R8 chuck arbor
  • safety guard
  • 2 T-bolts
  • oil bottle
  • adjustment wrenches
  • hex keys
  • tool box

Drilling Capacity

3/4"/5/8"

No. Of Speeds

2

Table Size

7-1/16" W x 27-1/2" L

Overall Width

24"

Overall Length

35-1/2"

Overall Height

36-1/4"

Max. Distance Spindle Nose To Table

13"

Swing

13"

Spindle Taper

R8

Spindle Stroke

2"

Cross Travel

6-7/8"

RPM

50-1,125 / 100-2,250

Face Mill Capacity

2-1/2"

End Mill Capacity

3/4"

Max. Longitudinal Travel

18-7/8"

Country Of Origin

China

  • Powerful 1 HP, 120V single phase DC motor
  • 3 axis (X, Y, Z) digital readout (DRO) for precise operations and repeatable results
  • Safety guard with limit switch protection
  • Spindle depth digital readout and control panel with metric and imperial readings
  • Spindle RPM digital readout & spindle depth fine feed knob
  • Forward/reverse switch and variable speed selector dials
  • Coolant trough in table
  • 1/2" T-slot on table
  • 220V, 1 phase, 60Hz
  • 3/4" drilling capacity in cast iron, 5/8" drilling capacity in steel
  • 4.8 Amp., 2,250 RPM motor
