Lincoln Electric

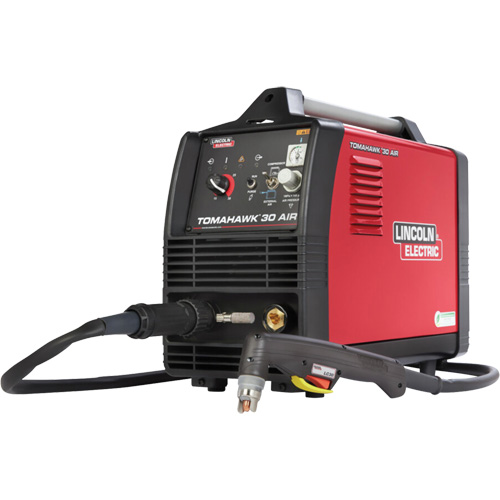

Tomahawk® 30 AIR Plasma Cutter with 10' Hand Torch & Built-In Compressor

Model: TTV731

Mfr. No.: K5457-1

  • Tomahawk® 30 AIR Plasma Cutter with 10' Hand Torch & Built-In Compressor R.M.G. Prévention

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,258.00 / Each

0 In Stock

Includes

  • (1) Tomahawk 30 AIR Plasma Cutter
  • (1) Internal Air Compressor (External Air Connection also Standard)
  • (1) K5537-1 LC30 Hand Torch and 10 ft (3 m) Cable
  • (3) KP2842-1 Electrode
  • (3) KP2842-6 Nozzle 30A
  • (2) KP2842-4 Swirl Ring
  • (1) KP2842-3 Retaining Cap (Internal Air-2 Holes)
  • (1) KP2842-5 Drag Spacer
  • (1) KP2842-7 Retaining Cap (Internal Air- 6 Holes)
  • (1) Air Regulator and Pressure Gauge
  • (1) Internal Water Separator
  • (1) Work Clamp and Cable
  • (1) Shoulder Strap
  • (1) Input Power Cord

Voltage Input Power

230 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Rated Output #1A (Current/Voltage/Duty Cycle)

25A/90V/100%

Rated Output #1B (Current/Voltage/Duty Cycle)

30A/92V/60%

Input Current At Max Rated Ouput #1

16A

Machines Processes

Plasma Cutting

Max Rating

30A

Gas Supply

Air or Nitrogen

Gas Pressure Required

80 - 110 PSI (6 -7.5 Bar)

Output Range

15-30A

  • Cuts mild and stainless steel precisely, and can be used with either external or internal compressor
  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start System – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
  • Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc
  • Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables
  • Added Safety – The Parts-in-Place system detects correct installation of consumables and torch
  • Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations
