Reed Instruments

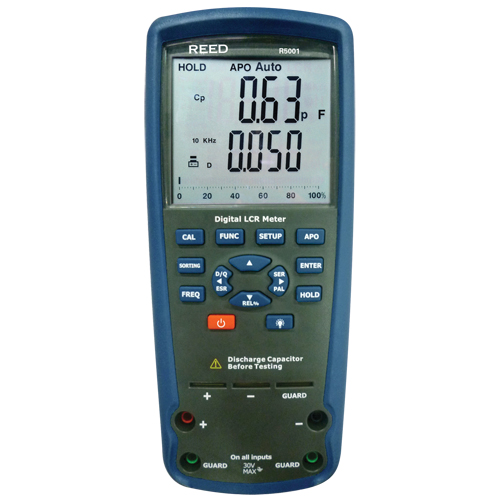

LCR Meter with ISO Certificate

Model: NJW155

Mfr. No.: R5001-NIST

  • LCR Meter with ISO Certificate R.M.G. Prévention

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$559.00 / Each

0 In Stock

Hand Held/Bench Model

Hand Held

Test Frequencies

100/120/1k Hz 10k Hz 100k Hz

Test Signal Level

0.5V AC RMS typical

Power Supply

6 x 1.5V AA batteries

Dimensions

8-19/32 x 3-11/16" x 2-13/32"

  • Autoranging operation for AC impedance and DE resistance measurement
  • Auto LCR smart check and measurement
  • Series/Parallel modes
  • Ls/Lp/Cp with D/Q/Ø/ESR parameters
  • Support DCR mode 200 to 200MO
  • High accuracy with 4 or 5 terminal Kelvin measurement
  • Testing frequency is up to 10kHz and output frequency is up to 100kHz
  • Dual display with backlight
  • Data hold function
  • Low battery indication with auto power off
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
